• Camera

• Image Sensor

  • 1/2.8" 4K Exmor CMOS

• Effective Picture Elements

  • 8 Megapixels

• Output Resolutions

  • 4K/30, 4K/29.97, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50

• Minimum Illumination

  • 0.5 lux (IRE50, F1.6, 30fps)

• S/N Ratio

  • ≥ 50dB

• Gain

  • Auto, Manual

• TV Line

  • 1400 (Center)

• Shutter Speed

  • 1/1 to 1/32,000 sec

• Exposure Control

  • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR

• White Balance

  • Auto, Manual, ATW, One Push

• Optical Zoom

  • 21X

• Digital Zoom

  • 12X

• Total Zoom

  • 252X

• Viewing Angles

  • DFOV: 66.4° (Wide) to 3.3° (Tele)
  • HFOV: 52.26° (Wide) to 2.66° (Tele)
  • VFOV: 41.26° (Wide) to 2° (Tele)

• Focal length

  • f = 5.3 mm (Wide) to 110 mm (Tele)

• Aperture (Iris)

  • F = 1.6 (Wide) to 3.8 (Tele)

• Minimum Working Distance

  • Wide: 1.5 m, Tele: 1.5 m

• Pan/Tilt Angles

  • Pan: ±170°, Tilt: +90° / -30°

• Pan/Tilt Speed (Manual)

  • Pan: 0.1° to 100°/sec, Tilt: 0.1° to 100°/sec

• Preset Speed

  • Pan: 200°/sec, Tilt: 200°/sec

• Preset Positions

  • 10 (IR), 256 (RS-232 / RS-422 / IP)

• Camera Control - Interfaces

  • RS-232 (DIN8), RS-422 (RJ45), IP

• Camera Control - Protocols

  • VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)

• Image Processing

  • Noise Reduction (2D / 3D), Flip, Mirror

• Power Frequencies

  • 50Hz, 60Hz

• AI Auto Tracking Functions

• Tracking Modes

  • Presenter Mode, Zone Mode, Hybrid Mode

• Privacy Protection Mechanism

• Protection Mode

  • Sleep Mode

• Audio

• Channel

  • 2ch Stereo

• Codecs

  • AAC-LC, PCM

• Interface

• Video Outputs

  • 3G-SDI, HDMI, IP, USB

• Audio Outputs

  • 3G-SDI, HDMI, IP, USB

• Audio Inputs

  • MIC in, Line in

• General

• Power Requirement

  • AC 100-240V to DC 12V/5A

• Power Consumption

  • 19W

• PoE

  • PoE+

• Dimensions (W x H x D)

  • 180 x 192 x 145 mm

• Net Weight

  • 2 (±0.1) kg

• Application

  • Indoor

• Tally Lamp

  • Yes

• Security

  • Kensington Slot

• Remote Control

  • Infrared

• Operating Conditions

  • Temperature: 0°C to +40°C ; Humidity: 20% to 80%

• Storage Conditions

  • Temperature: -20°C to +60°C ; Humidity: 20% to 95%

• IP Streaming

• Resolution

  • 4K 30fps

• Network Video Compress Formats

  • H.264, H.265, MJPEG

• Maximum Frame Rate

  • 4K 30fps

• Bit-rate Control Modes

  • VBR, CBR (selectable)

• Range of Bit-Rate Setting

  • 512 Kbps to 32 Mbps

• Network Interfaces

  • 10 / 100 / 1000 Base-T

• Multi-Stream Capability

  • 2 (RTSP / Web Page), 4K 30fps (max.)

• Network Protocols

  • IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP

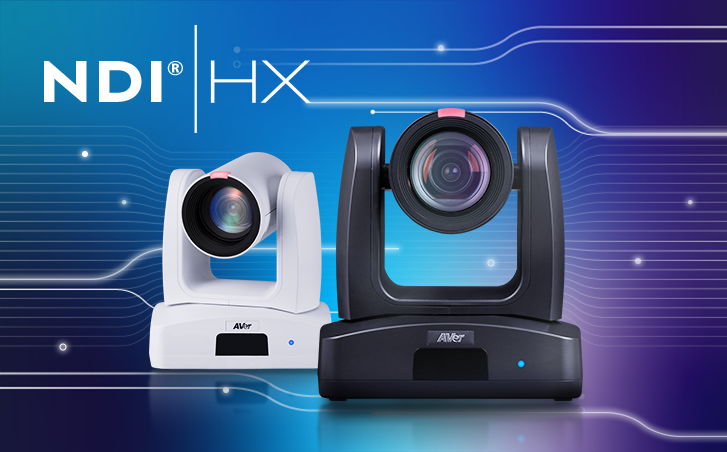

• NDI^®|HX Capability

  • License Upgrade

• USB

• Connector

  • USB 3.1

• Video Format

  • MJPEG, YUY2

• Maximum Video Resolution

  • 2160p

• USB Video Class

  • UVC 1.1

• USB Audio Class

  • UAC 1.0

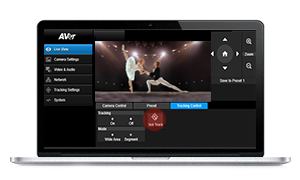

• Web UI

• Live Video Preview

  • Yes

• Camera PTZ Control

  • Pan, Tilt, Zoom, Focus, Preset Control

• Camera/Image Adjustment

  • Exposure, White Balance, Picture

• Network Configuration

  • DHCP, IP Address, Gateway, Subnet Mask, DNS

• Software Tools

• IP Search & Configuration Tool

  • Support Windows^® 7 or later

• PTZ Management

  • Support Windows^® 7 or later

• PTZ Control Panel

  • Support iOS & iPadOS^® 11 or later

• PTZ Link

  • Support Windows^® 7 or later, MacOS^® 10.14 or later

• OBS Plugin for PTZ Cameras

  • Support Windows^® 8 or later, MacOS^® High Sierra v10.13 or later

• CaptureShare

  • Support Windows^® 7 or later, MacOS^® 10.14 or later

• Warranty

• Camera

  • 3 Years

• Accessories

  • 1 Year

• Package Contents

  • Camera, Drilling Paper, Ceiling Mount Bracket (x2) Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4"-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Ties (x4)

• Optional Accessories

  • AVer CL01 PTZ Camera Controller, L-Type Wall Mount

* Specifications may vary depending on location and are subject to change without notice.

• 1Tally Lamp
• 2IR Sensor
• 3LED Indicator
• 4Kensington Lock

• 5PoE+ IEEE 802.3AT
• 6RS232 Port
• 7RS422 Port
• 8USB 3.1 Port (Type B)

• 9Audio In
• 10HDMI Port
• 113G-SDI
• 12DC Power Jack
