- Image sensor
-
- 1/2.8" 1080p 60fps Exmor CMOS
-
- Effective Picture Elements
-
-
- Output Resolution
-
- Auto
- 1080p@60, 1080p@59.94, 1080p@50, 1080i@60, 1080i@59.94, 1080i@50, 1080p@30, 1080p@29.97, 1080p@25, 720p@60, 720p@59.94, 720p@50
-
- Minimum Illumination
-
- 0.3 lux (IRE50, F1.6, 30fps)
-
- TV Line
-
- 800 (Center/Wide), 600 (Corner/Wide)
-
- Shutter Speed
-
-
- Exposure Control
-
- Auto, Manual, Priority AE (Shutter, IRIS), BLC
-
- White Balance
-
- Auto / Indoor / Outdoor / One-push / Manual (2500 - 10000)
-
- Optical Zoom
-
-
- Digital Zoom
-
-
- Horizontal Viewing Angle
-
-
- Focal length
-
- f = 4.3 mm (Wide) – 129 mm (Tele)
-
- Aperture (Iris)
-
- F = 1.6 (Wide) – 4.7 (Tele)
-
- Minimum Working Distance
-
- 0.01 m (Wide), 1.2 m (Tele)
-
- Pan/Tilt Angle
-
- Pan: +- 170° ; Tilt: +90° / -30°
-
- Pan/Tilt Speed (manual)
-
- Pan: 0.1 – 100° /sec, Tilt: 0.1 – 100° /sec
-
- Preset Speed
-
- Pan: 200° /sec, Tilt: 200° /sec
-
- Preset Position
-
-
- Camera Control - Interface
-
- RS-232 (DIN9) / RS-422 (RJ45)
-
- Camera Control - Protocol
-
- VISCA (RS-232/RS-422/IP), CGI (IP), PELCO-D, PELCO-P
-
- Image Processing
-
- Noise Reduction (2/3D), Flip, Mirror
-
- Power Frequency
-
-
- Channel
-
-
- Codec
-
- AAC-LC (48/44.1/32/24K), G.711/PCM
-
- Video Output
-
-
- Audio Output
-
-
- Power Requirement
-
- AC100V-AC240V to DC12V/5A
-
- PoE
-
- PoE+ (IEEE 802.3at), Class 4
-
- Operating Condition
-
- Temperature: 0°C – +40°C ; Humidity: 20% – 80%
-
- Storage Condition
-
- Temperature: -20°C – +60°C ; Humidity: 20% – 95%
-
- Dimensions
-
- L=180 mm, W= 145 mm, H= 183.5 mm
-
- Weight
-
-
- Remote Control
-
-
- Accessories
-
- Remote control, 12V/5A power adapter
-
- Resolution
-
- 1920x1080, 1280x720, 960x540, 640x480
-
- Network Video Compress Format
-
- H.264 (High Profile), MJPEG
-
- Maximum Frame Rate
-
- H.264: 60fps (1920x1080), MJPEG: 30fps (1920x1080)
-
- Bit-rate Control Mode
-
-
- Range of Bit-rate setting
-
-
- Network Interface
-
-
- Multi-stream Capability
-
-
- Network Protocol
-
- IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, ONVIF, VISCA over IP
-
- Maximum Video Resolution
-
-
- USB Video Class
-
-
- Live Video Preview
-
-
- Camera PTZ Control
-
- Pan / Tilt / Zoom / Focus / Preset Control
-
- Camera / Image Adjustment
-
- Exposure / White Balance / Picture
-
- Network Configuration
-
- DHCP, IP Address, Gateway, Subnet Mask, DNS
-
- Device IP Searching, Configuration Tool
-
* NDI® is a registered trademark of NewTek, Inc.
* NDI®|HX2 is technology of NewTek, Inc.
* Specifications may vary depending on location and are subject to change without notice.

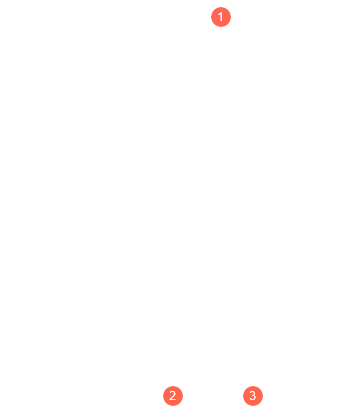

Front

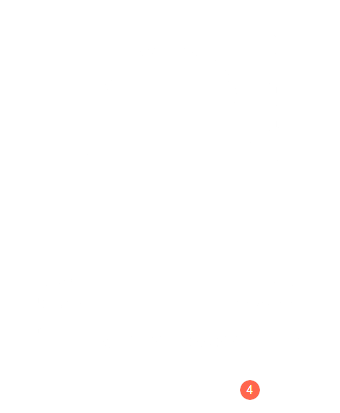

Side

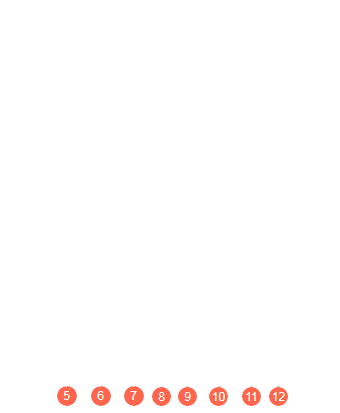

Back
- 1Camera lens
- 2IR sensor
- 3LED indicator
- 4Kensington lock
- 5NDI®|HX / PoE+ port
- 6RS-232 port
- 7RS-422 port
- 8Audio in
- 9Micro USB port
- 10HDMI port
- 113G-SDI port
- 12DC Power jack
