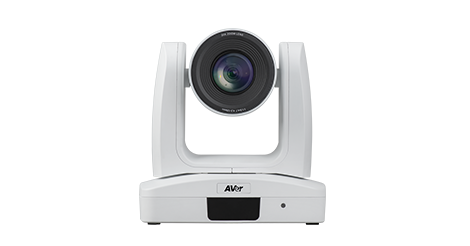

PTZ330

• Camera

• Image sensor

  • 1/2.8" 1080p 60fps Exmor CMOS

• Effective picture elements

  • Approx. 2.1 Megapixels

• Output Resolution

  • Auto
  • 1080P@60, 1080P@59.94, 1080P@50, 1080i@60, 1080i@59.94, 1080i@50, 1080P@30, 1080P@29.97, 1080P@25, 720P@60, 720P@59.94, 720P@50

• Minimum Illumination

  • 0.3 lux (IRE50, F1.6, 30FPS)

• S/N ratio

  • > 50dB

• Gain

  • Auto / Manual

• TV Line

  • 800 (Center/Wide), 600 (Corner/Wide)

• Shutter Speed

  • 1/1 s to 1/32,000 s

• Exposure Control

  • Auto, Manual, Priority AE (Shutter, IRIS), BLC

• White balance

  • Auto / Indoor / Outdoor / One-push / Manual (2500 - 10000)

• Optical Zoom

  • 30X

• Digital Zoom

  • 12X

• Diagonal Viewing Angle

  • 74.6° (Wide) – 3.13° (Tele)

• Focal length

  • f = 4.3 mm (Wide) – 129 mm (Tele)

• Aperture (Iris)

  • F = 1.6 (wide) – 4.7 (Tele)

• Minimum working distance

  • 0.01 m (Wide), 1.2 m (Tele)

• Pan/Tilt Angle

  • Pan: +- 170°, Tilt: +90°/-30°

• Pan/Tilt Speed (manual)

  • Pan: 0.1 – 100° /sec, Tilt: 0.1 – 100° /sec

• Preset Speed

  • Pan: 200° /sec, Tilt: 200° /sec

• Preset Position

  • 10 (IR), 255 (RS-232)

• Camera Control - Interface

  • RS-232 (DIN9) / RS-422 (RJ45)

• Camera Control - Protocol

  • VISCA (RS-232/RS-422/IP), CGI (IP), PELCO-D, PELCO-P

• Image Processing

  • Noise Reduction (2/3D), Filp, Mirror

• Power Frequency

  • Auto / 50Hz / 60Hz

• Audio

• Channel

  • 2ch (stereo)

• Codec

  • AAC-LC (48/44.1/32/24K), G.711/PCM

• Sample Rate

  • 48/44.1/32/24/16/8Khz

• Interface

• Video Output

  • 3G-SDI, HDMI, IP, USB

• Audio Output

  • 3G-SDI, HDMI, IP, USB

• Audio Input

  • MIC / Line in

• General

• Power Requirement

  • AC100V-AC240V to DC12V/5A

• PoE

  • POE+ (IEEE 802.3at), Class 4

• Operating Condition

  • Temperature: 0°C – +40°C ; Humidity: 20% – 80%

• Storage Condition

  • Temperature: -20°C – +60°C ; Humidity: 20% – 95%

• Dimensions

  • L=180 mm, W= 145 mm, H= 183.5 mm

• Weight

  • 1.62 kg

• Application

  • Indoor

• Security

  • Kensington slot

• Remote Control

  • Infrared

• Accessories

  • Remote control, 12V/5A power adapter

• IP Streaming

• Resolution

  • 1920x1080, 1280x720, 960x540, 640x480

• Network Video Compress Format

  • H.264 (High Profile), MJPEG

• Maximum Frame Rate

  • H.264: 60fps (1920x1080), MJPEG: 30fps (1920x1080)

• Bit-rate Control Mode

  • VBR/CBR (selectable)

• Range of Bit-rate setting

  • 512Kbps – 32Mbps

• Network Interface

  • 10/100/1000Base-T

• Multi-stream Capability

  • 2

• Network Protocol

  • IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, ONVIF, VISCA over IP

• USB

• Connector

  • Micro-USB 2.0

• Video Format

  • YUV, MJPEG, H.264

• Maximum Video Resolution

  • Up to 1080p

• USB Video Class

  • UVC1.1

• USB Audio Class

  • UAC1.0

• Web UI

• Live Video Preview

  • Yes

• Camera PTZ Control

  • Pan / Tilt / Zoom / Focus / Preset Control

• Camera / Image Adjustment

  • Exposure / White Balance / Picture

• Network Configuration

  • DHCP, IP Address, Gateway, Subnet Mask, DNS

• Software Tools

• Device IP Searching, Configuration tool

  • Windows Application

• Warranty

• Camera

  • 3 Years

• Accessories

  • 1 Year

* Specifications may vary depending on location and are subject to change without notice.
