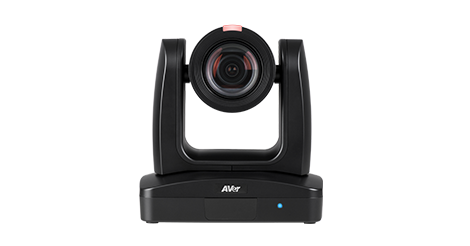

PTC310H

• Camera

• Image Sensor

  • 1/2.8" 4K Exmor CMOS

• Effective Picture Elements

  • 8 Megapixels

• Output Resolutions

  • 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/59.94, 720p/50

• Minimum Illumination

  • 0.4 lux (IRE50, F1.6, 30fps)

• S/N Ratio

  • ≥ 50dB

• Gain

  • Auto, Manual

• TV Line

  • 1400 (Center)

• Shutter Speed

  • 1/1 to 1/32,000 sec

• Exposure Control

  • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR

• White Balance

  • Auto, Manual

• Optical Zoom

  • 12X

• Digital Zoom

  • 12X

• Sensor Zoom

  • 2X

• Viewing Angles

  • DFOV : 78° (Wide) to 7° (Tele)
  • HFOV : 70° (Wide) to 6° (Tele)
  • VFOV : 42° (Wide) to 3° (Tele)

• Focal length

  • f = 3.9 mm (Wide) to 46.8 mm (Tele)

• Aperture (Iris)

  • F = 1.6 (Wide) to 2.8 (Tele)

• Minimum Working Distance

  • 0.3 m (Wide), 1.5m (Tele)

• Pan / Tilt Angles

  • Pan : ±170°, Tilt : +90° / -30°

• Pan / Tilt Speed (Manual)

  • Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec

• Preset Speed

  • Pan : 200° / sec, Tilt : 200° / sec

• Preset Positions

  • 10 (IR), 256 (RS-232 / RS-422 / IP)

• Camera Control - Interfaces

  • RS-232 (DIN8), RS-422 (RJ45), IP

• Camera Control - Protocols

  • VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)

• Image Processing

  • Noise Reduction (2D / 3D), Flip, Mirror

• Power Frequencies

  • 50 Hz, 60 Hz

• AI Auto Tracking Functions

• Tracking Modes

  • Presenter Mode, Zone Mode

• Audio

• Channels

  • 2ch Stereo

• Codecs

  • AAC-LC (48 / 44.1 / 32 / 24K), G.711, PCM (8K)

• Sample Rates

  • 48 / 44.1 / 32 / 24 / 16 / 8 KHz

• Interface

• Video Outputs

  • HDMI, IP, USB

• Audio Outputs

  • HDMI, IP, USB

• Audio Inputs

  • MIC in, Line in

• General

• Power Requirement

  • AC 100 - 240V to DC 12V/5A

• Power Consumption

  • 18W

• PoE

  • PoE+

• Dimensions (W x H x D)

  • 180.0 x 183.5 x 145.0 mm

• Net Weight

  • 1.7 (±0.1) kg

• Application

  • Indoor

• Tally Lamp

  • Yes

• Security

  • Kensington slot

• Remote Control

  • Infrared

• Operating Conditions

  • Temperature: 0°C to +40°C Humidity: 20% to 80%

• Storage Conditions

  • Temperature: -20°C to +60°C Humidity: 20% to 95%

• IP Streaming

• Resolution

  • 4K 30fps

• Network Video Compress Formats

  • H.264, H.265, MJPEG

• Maximum Frame Rate

  • 4K 30fps

• Bit-Rate Control Modes

  • VBR, CBR (selectable)

• Range of Bit-Rate setting

  • 512 Kbps to 32 Mbps

• Network Interfaces

  • 10 / 100 / 1000 Base-T

• Multi-stream Capability

  • 2 (RTSP / Web Page), 1080p 60fps (max.)

• Network Protocols

  • IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP

• USB

• Connector

  • USB 3.0

• Video Formats

  • MJPEG, YUY2

• Maximum Video Resolution

  • 2160p

• USB Video Class (UVC)

  • UVC 1.1

• USB Audio Class (UAC)

  • UAC 1.0

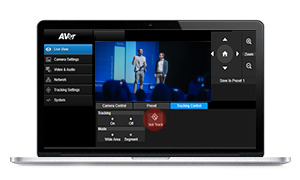

• Web UI

• Live Video Preview

  • Yes

• Camera PTZ Control

  • Pan, Tilt, Zoom, Focus, Preset Control

• Camera/Image Adjustment

  • Exposure, White Balance, Picture

• Network Configuration

  • DHCP, IP Address, Gateway, Subnet Mask, DNS

• Software Tools

• IP Search & Configuration Tool

  • Support Windows^® 7 or later

• PTZ Management

  • Support Windows^® 7 or later

• PTZ Control Panel

  • Support iPadOS^® v11 or later

• CaptureShare

  • Support Windows^® 7 or later

• Warranty

• Camera

  • 3 Years

• Accessories

  • 1 Year

• Package Contents

  • Camera, Remote Control, Power Adapter, Power Cord, Cable Ties (x 5), Screws (x 10), Cable Fixing Plates (x 2), Ceiling Mount Brackets (x 2), Quick Start Guide

• Optional Accessories

  • AVer CL01 PTZ Camera Controller, L-Type Wall Mount, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable

* Specifications may vary depending on location and are subject to change without notice.

• 1Tally Lamp
• 2Camera Lens
• 3IR Sensor
• 4Power Indicator

• 5Kensington Lock
• 6PoE+
• 7RS-232
• 8RS-422

• 9Line In
• 10USB 3.0 Type-C
• 11HDMI
• 12DC 12V
