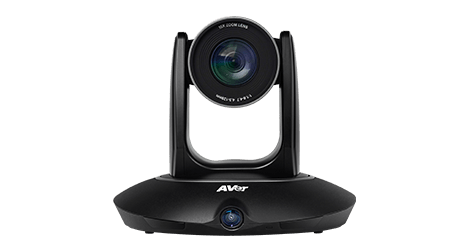

PTC115+

• Camera

• Image sensor

  • 1/2.8" 1080p Exmor CMOS

• Effective Picture Elements

  • 2 Megapixels

• Output Resolutions

  • Auto, 1080p/60, 1080p/50, 1080p/30, 1080i/60, 1080i/50, 720p/60

• Minimum Illumination

  • 0.47 Lux (IRE50, F1.6, 60fps); 0.23 Lux (IRE50, F1.6, 30fps)

• S/N Ratio

  • >50dB

• Gain

  • Auto, Manual

• TV Line

  • 900 (Center), 600 (Corner)

• Shutter Speed

  • 1/5 to 1/32,000 sec

• Exposure Control

  • Auto, Manual, Priority AE (Shutter, IRIS)

• White Balance

  • Auto, Manual

• Optical Zoom

  • 22X

• Digital Zoom

  • 12X

• Sensor Zoom

  • 1X

• Viewing Angles

  • DFOV : 73° (Wide) to 4.2° (Tele)
  • HFOV : 67° (Wide) to 3.7° (Tele)
  • VFOV : 38° (Wide) to 2.1° (Tele)

• Focal length

  • f = 4.3 mm (Wide) to 94.6 mm (Tele)

• Aperture (Iris)

  • F = 1.6 (Wide) to 4.3 (Tele)

• Minimum Working Distance

  • 0.1 m (Wide), 1.2 m (Tele)

• Pan / Tilt Angles

  • Pan: ±175°
  • Tilt: +90°/-30°

• Pan / Tilt Speed (Manual)

  • Pan: 2° to 50°/sec
  • Tilt: 2° to 50°/sec

• Preset Speed

  • Pan: 160°/sec
  • Tilt: 160°/sec

• Preset Positions

  • 10 (IR), 256 (RS-232)

• Camera Control - Interfaces

  • RS-232 (DIN8)/IP

• Camera Control - Protocols

  • VISCA (RS-232/IP)
  • PELCO-D & PELCO-P (RS-232)
  • CGI (IP)

• Image Processing

  • Noise Reduction

• Power Frequencies

  • Auto, 50 Hz, 60 Hz

• Panoramic Camera (Full View)

• Image Sensor

  • 1/2.8" 1080p Exmor CMOS

• Effective Picture Elements

  • 2 Megapixels

• Output Resolutions

  • auto, 1080p/60, 1080p/30, 720p/60

• Focal Length

  • 2.12 mm

• White Balance

  • Auto

• Exposure Control

  • Auto

• Viewing Angles

  • DFOV = 120°
  • HFOV = 110°
  • VFOV = 74°

• AI Auto Tracking Functions

• Tracking Modes

  • Wide Area, Stage, Segment

• Audio

• Channels

  • 1ch Mono (RTSP)
  • 2ch Stereo (HDMI/UAC)

• Codecs

  • AAC-LC (48K)
  • G.711 (8K)

• Sample Rates

  • 48/8 KHz

• Interface

• Video Outputs

  • 3G-SDI, HDMI, IP, USB

• Audio Outputs

  • HDMI, IP, USB

• Audio Inputs

  • Line in

• General

• Power Requirement

  • AC 110–220V to DC 12V/5A

• Power Consumption

  • 24W

• PoE

  • PoE+

• Dimensions (W x H x D)

  • 202 x 178 x 210 mm

• Net Weight

  • 1.75 (±0.1) kg

• Application

  • Indoor

• Tally Lamp

  • N/A

• Security

  • Kensington Slot

• Remote Control

  • Infrared

• Operating Conditions

  • Temperature: 0°C to 40°C
  • Humidity: 20% to 80%

• Storage Conditions

  • Temperature: -20°C to 60°C
  • Humidity: 20% to 95%

• IP Streaming

• Resolution

  • 1080p 60fps (Dual Stream)

• Network Video Compress Formats

  • H.264, MJPEG

• Maximum Frame Rate

  • 1080p 60fps (Dual Stream)

• Bit-Rate Control Modes

  • CBR

• Bit-Rate Range Setting

  • 512 Kbps to 6 Mbps

• Network Interface

  • 10/100/1000Base-T

• Multi-stream Capability

  • 3 (2 for RTSP, 1 for Web Page)
  • 1080p 60fps (max.)

• Network Protocols

  • IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA Over IP, ONVIF

• NDI^®|HX Capability

  • N/A

• USB

• Connector

  • USB 2.0

• Video Formats

  • MJPEG, YUY2

• Maximum Video Resolution

  • 1080p

• USB Video Class

  • UVC1.1

• USB Audio Class

  • UAC1.0

• Web UI

• Live Video Preview

  • Yes

• Camera PTZ Control

  • Pan, Tilt, Zoom, Focus, Preset Control

• Camera/Image Adjustment

  • Exposure, White Balance, Picture

• Network Configuration

  • DHCP, IP Address, Gateway, Subnet Mask, DNS

• Software Tools

• IP Search and Configuration Tool

  • Supports Windows^® 7 or later

• PTZ Management

  • Supports Windows^® 7 or later

• PTZ Control Panel

  • Supports iPadOS^® 11 or later

• CaptureShare

  • Supports Windows^® 7 or later
  • Supports macOS^® 10.14 or later

• Warranty

• Camera

  • 3 Years

• Accessories

  • 1 Year

• Package Contents

  • Remote Control
  • Power Adapter
  • Power Cord
  • Quick Start Guide

• Optional Accessories

  • AVer CL01 PTZ Camera Controller
  • L-Type Wall Mount
  • D-Type Ceiling Mount

* Specifications may vary depending on location and are subject to change without notice.

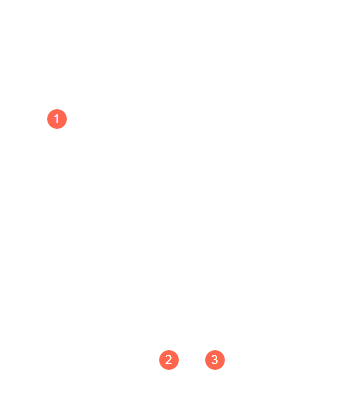

• 1PTZ camera
• 2Panoramic camera
• 3Power indicator

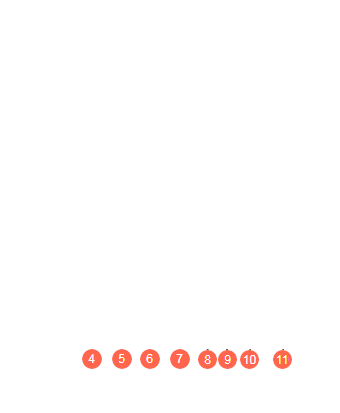

• 4PoE+
• 5USB Type-B
• 63G-SDI

• 7HDMI
• 8Line in
• 9RS-232
• 10DC 12V
• 11Kensington Lock
